Get Started

This package is now featured on the official general Julia package registry. Simply use Julia's package manager pkg to add TrendDecomposition to your preferred environment.

@(v1.11) pkg> add TrendDecomposition

julia> using TrendDecomposition

The developing branch of this package can either be employed by cloning this repository or by using the Julia package manager. With the package manager simply use the add command:

@(v1.11) pkg> add https://github.com/sdBrinkmann/TrendDecomposition.jl

Warning

This package is currently under rapid development and follows Semantic Versioning. Until the 1.0.0 release is reached, the API of this package can change with any minor version update, please consult the documentation of this package after each update when using this package.

Usage

The basic usage of trend estimation using the Hodrick-Prescott fitler is demonstrated with the US industrial production index (IPI) provided by FRED data service.

using TrendDecomposition
using CSV

# Set path to directory where time series is located
path = "/.../data"

IPI = CSV.read("$(path)/IPB50001SQ.csv", copycols=true)

# HP filter with λ = 1600
hp = hpFilter(IPI[!, 2], 1600)

# The above is equivalent to Whittaker-Henderson smoothing with m = 2 differentiation
wh = bohlmannFilter(IPI[!, 2], 2, 1600)

# Boosted HP filter with baysian-type information criterion (BIC)
bHP_bic = bhpFilter(IPI[!, 2], 1600, Criterion="BIC")

# Boosted HP filter with augmented Dickey-Fuller (ADF) test
bHP_adf = bhpFilter(IPI[!, 2], 1600, Criterion="ADF", p=0.01)

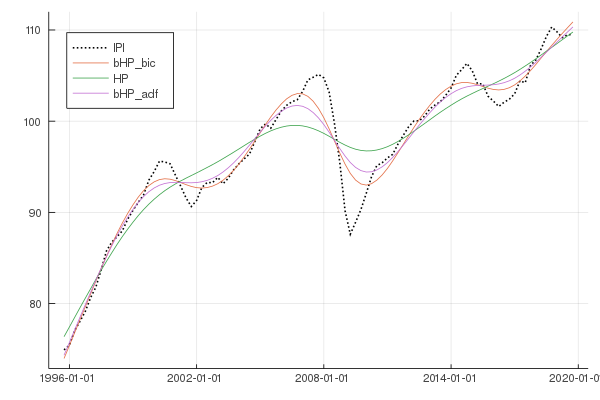

HP Results

Classical decomposition

This package implements moving averages with rollingAverage and seasonal averages with maSeason. With the help of both functions, we can conduct time series decompositions into a trend, seasonal and noise component. The function maDecompose replicates the decompose{stats} functionallity implemented in R.

using Plots
using TrendDecomposition

# Kendall M. G., Stuard A. (1983). The Advanced Theory of Statistics, Vol. 3
x = [-50, 175, 149, 214, 247, 237, 225, 329, 729, 809,
       530, 489, 540, 457, 195, 176, 337, 239, 128, 102, 232, 429, 3,
     98, 43, -141, -77, -13, 125, 361, -45, 184]


res = maDecompose(x, 4, combine=true)

plot(res; layout = (4, 1), title=["y" "trend" "season" "noise"], legend=false, tickfontsize=4)

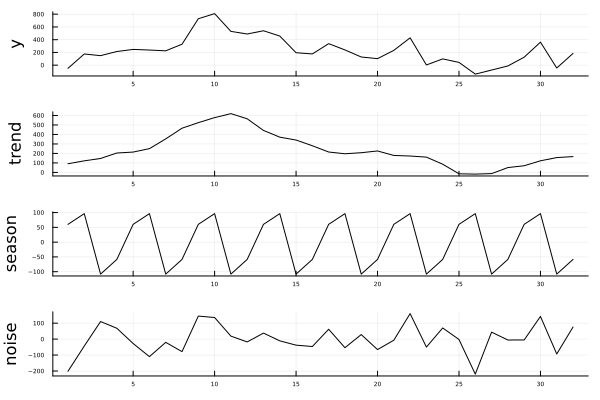

Classical Decomposition

Holt-Winters Method

For both local trend and seasonal component estimation, the Holt-Winters method can be used. The two following examples illustrate its dual usecase of modeling a trend and seasonal component for both decomposition and for forecasting time series.

Decomposition

using Plots
using CSV
using DataFrames

using TrendDecomposition

# Box, G.E.P., Jenkins, G.M. and Reinsel, G.C. (1994) Time Series Analysis; Forecasting and Control. 3rd Edition
air = CSV.read("./AirPassengers.csv", DataFrame, copycols=true)
data = air[!, 2]

seasons = 12

# Decomposition using multiplicative model with automatic optimization
f1, D1, p1 = holtWinters(data, seasons, model=:mul)

# difference between data points and estimated values
residual = data .- f1

plot([data D1 residual], layout = (5, 1), ylabel = ["y" "level" "slope" "season" "residual"], legend=false, tickfontsize=4, color=:black, guidefontsize=8)

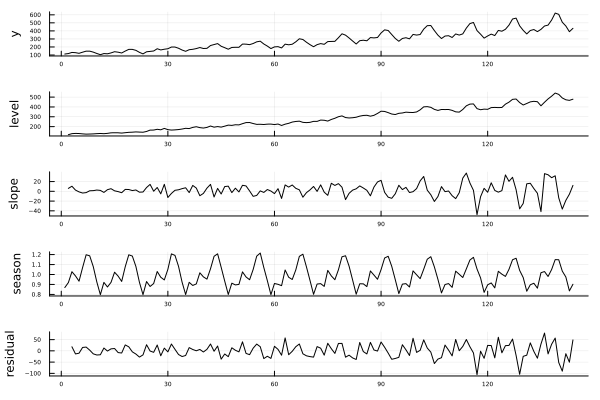

HW Decomposition

Forecasting

The damping factor $\varphi$ can be typed in julia with the keyboard as follows: \varphi<tab>


# Forecast horizon h = 24 and damping factor \varphi = 0.95
f2, D2, p2 = holtWinters(data, seasons, h=24, model=:mul, φ = 0.95)

n = length(data)
steps = (n+1):(n+24)

plot(data, color=:black, legend=false, title="HW forecast h=24")
plot!(steps, f2[(end-23):end], color=:red, label="forecast")

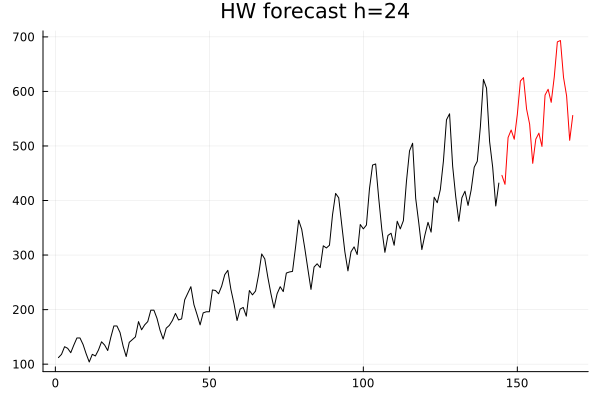

HW forecasting
